SAE AS 1560B:2018-09-11
Active Standard
Most Recent

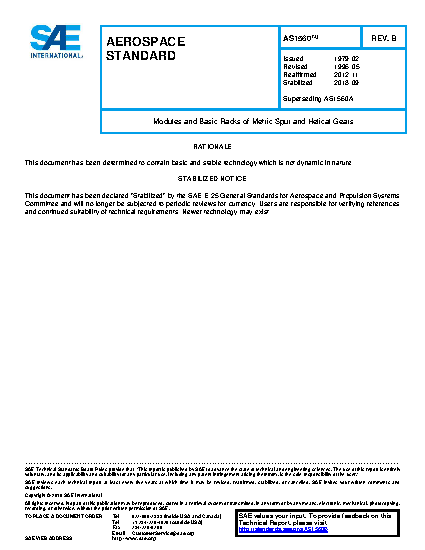

SAE AS 1560B:2018-09-11

Modules and Basic Racks of Metric Spur and Helical Gears (Stabilized: Sep 2018)

Summary

This SAE Aerospace Standard (AS) establishes the standard modules for aerospace metric involute gear teeth and establishes the tooth dimensions of aerospace metric involute gear teeth in terms of the conjugate rack type cutter whose counterpart reference profile is called the basic rack profile of the generated gear, having the tooth dimensions expressed in terms proportional to the module.

Technical characteristics

Publisher SAE International
Publication Date 09/11/2018
Page Count 9
Themes Aerospace
EAN ---
ISBN ---
Weight (in grams) ---
