SAE ARP 674D:2018-03-30

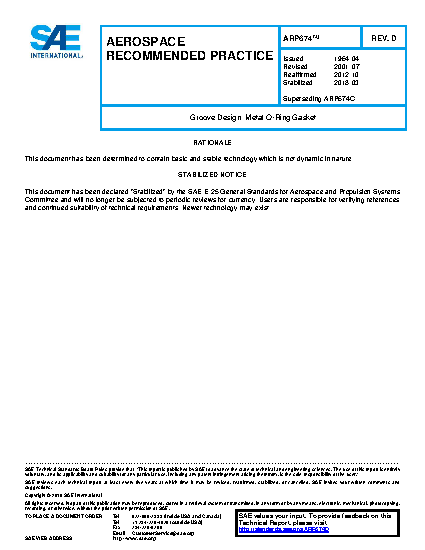

Groove Design, Metal O-Ring Gasket (Stabilized: Mar 2018)

Summary

Groove designs presented herein are applicable for use with the following "MS" metal O-ring gaskets conforming to the applicable "AS" standard drawings listed in 1(a) or 1(b), or to dimensionally equivalent gaskets of other materials:
  1. a
    AMS 5570 or AMS 5576 Plain
    1. 1
      AS9141 - 0.035 tube × 0.006 wall
    2. 2
      AS9142 - 0.062 tube × 0.006 wall
    3. 3
      AS9202 - 0.062 tube × 0.010 wall
    4. 4
      AS9203 - 0.094 tube × 0.006 wall
    5. 5
      AS9204 - 0.094 tube × 0.010 wall
    6. 6
      AS9205 - 0.125 tube × 0.010 wall
  2. b
    AMS 5570 or AMS 5576 Silver Plated
    1. 1
      AS9371 - 0.035 tube × 0.006 wall
    2. 2
      AS9372 - 0.062 tube × 0.006 wall
    3. 3
      AS9373 - 0.062 tube × 0.010 wall
    4. 4
      AS9374 - 0.094 tube × 0.006 wall
    5. 5
      AS9375 - 0.094 tube × 0.010 wall
    6. 6
      AS9376 - 0.125 tube × 0.010 wall
NOTE: The term "AS gasket" as used in this document refers to the 'MS' part numbers defined on the applicable 'AS' standards listed in 1(a) or 1(b).

Technical characteristics

Publisher SAE International
Publication Date 03/30/2018
Page Count 12
Themes Aerospace
EAN ---
ISBN ---
Weight (in grams) ---
