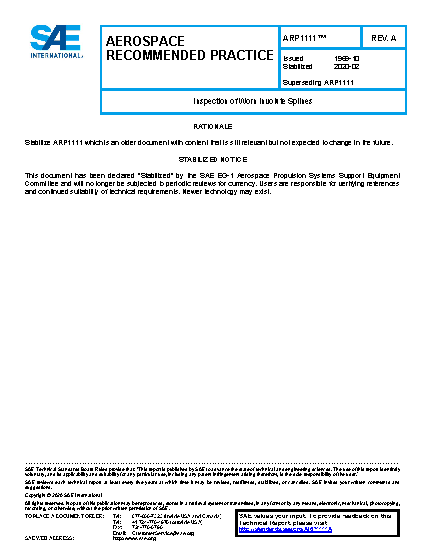

SAE ARP 1111A:2020-02-03
Inspection of Worn Involute Splines (Stabilized: Feb 2020)
Preview
Summary
This concept for measuring worn splines provides a direct wear depth dimension by utilizing the unworn involute surface as a contact point from which to measure the depth of wear on the spline tooth at the pitch diameter. Fig. 1 shows spline wear patterns and pitch diameter gaging points.
