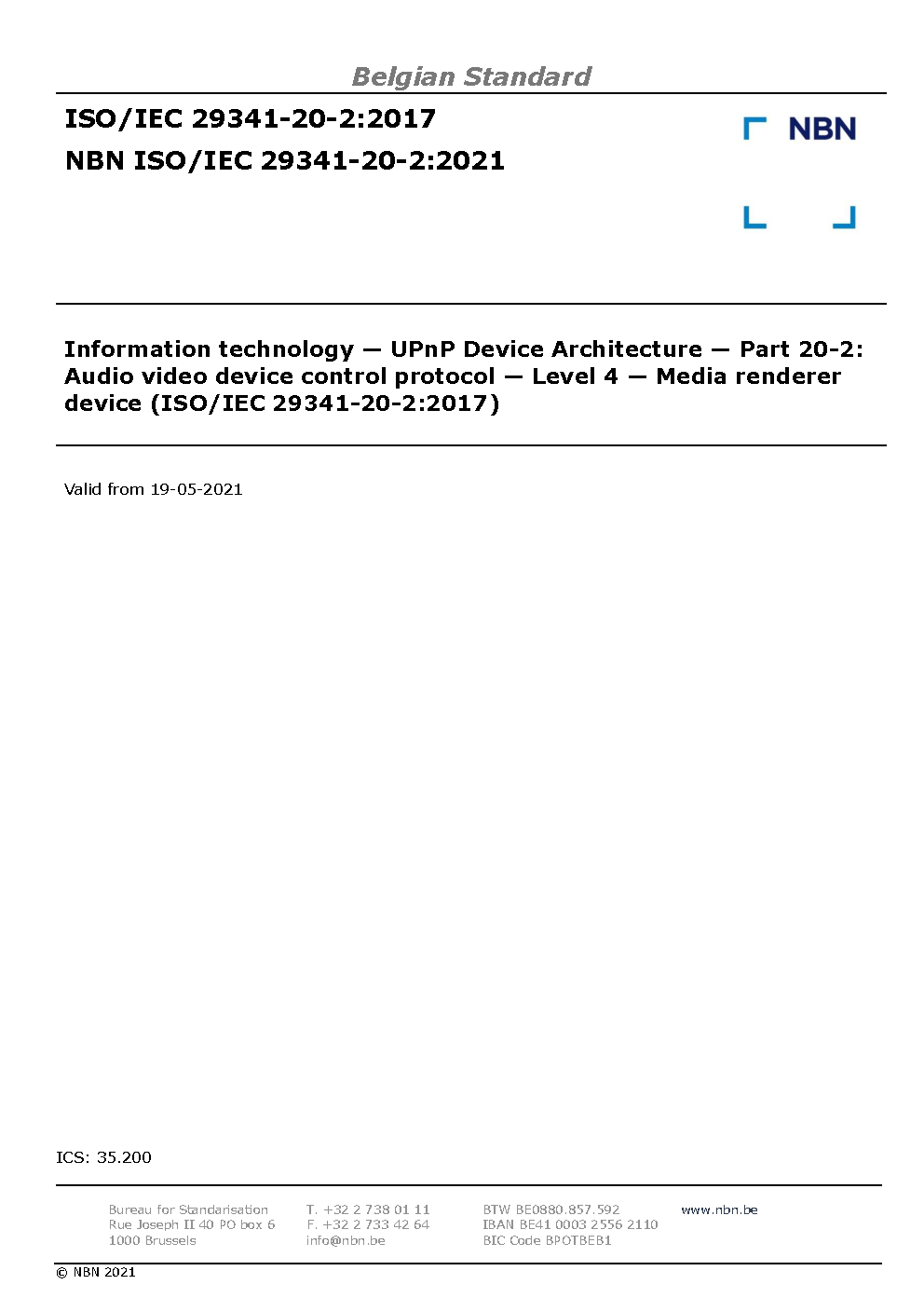

NBN ISO/IEC 29341-20-2:2021

This device specification is compliant with the Universal Plug and Play Device Architecture
version 1.0 [14]. It defines a device type referred to herein as MediaRenderer.
The MediaRenderer specification defines a general-purpose device template that can be used
to instantiate any Consumer Electronics (CE) device that is capable of rendering AV content
from the home network. It exposes a set of rendering controls in which a control point can
control how the specified AV content is rendered. This includes controlling various rendering
features such as brightness, contrast, volume, etc.
Example instances of a MediaRenderer include traditional devices such as TVs and stereo
systems. Some more contemporary examples include digital devices such as MP3 players
and Electronic Picture Frames (EPFs). Although most of these examples typically render one
specific type of content (for example, a TV typically renders video content), a MediaRenderer
is able to support a number of different data formats and transfer protocols. For example, a
sophisticated implementation of a TV MediaRenderer could also support MP3 data so that its
speakers could be used to play MP3 audio content.
The MediaRenderer device specification is very lightweight and is easy to implement on low-
resource devices such as an MP3 player. However, it can also be used to expose the high-
end capabilities of devices such as a PC.
A full-featured MediaRenderer exposes the following capabilities:
? Control various rendering characteristics
? Expose the supported transfer protocols and data formats
? Control the flow of the content (for example, FF, REW, etc), if appropriate depending
on the transfer protocol.
The MediaRenderer DOES not enable control points to:
? Send AV content to another device
Figure 1 — MediaRenderer Functional Diagram
The un-shaded blocks represent the UPnP services that are contained by a MediaRenderer.
The shaded blocks represent various device-specific modules that the UPnP services might
interact with. However, the internal architecture of a MediaRenderer device is vendor specific.
