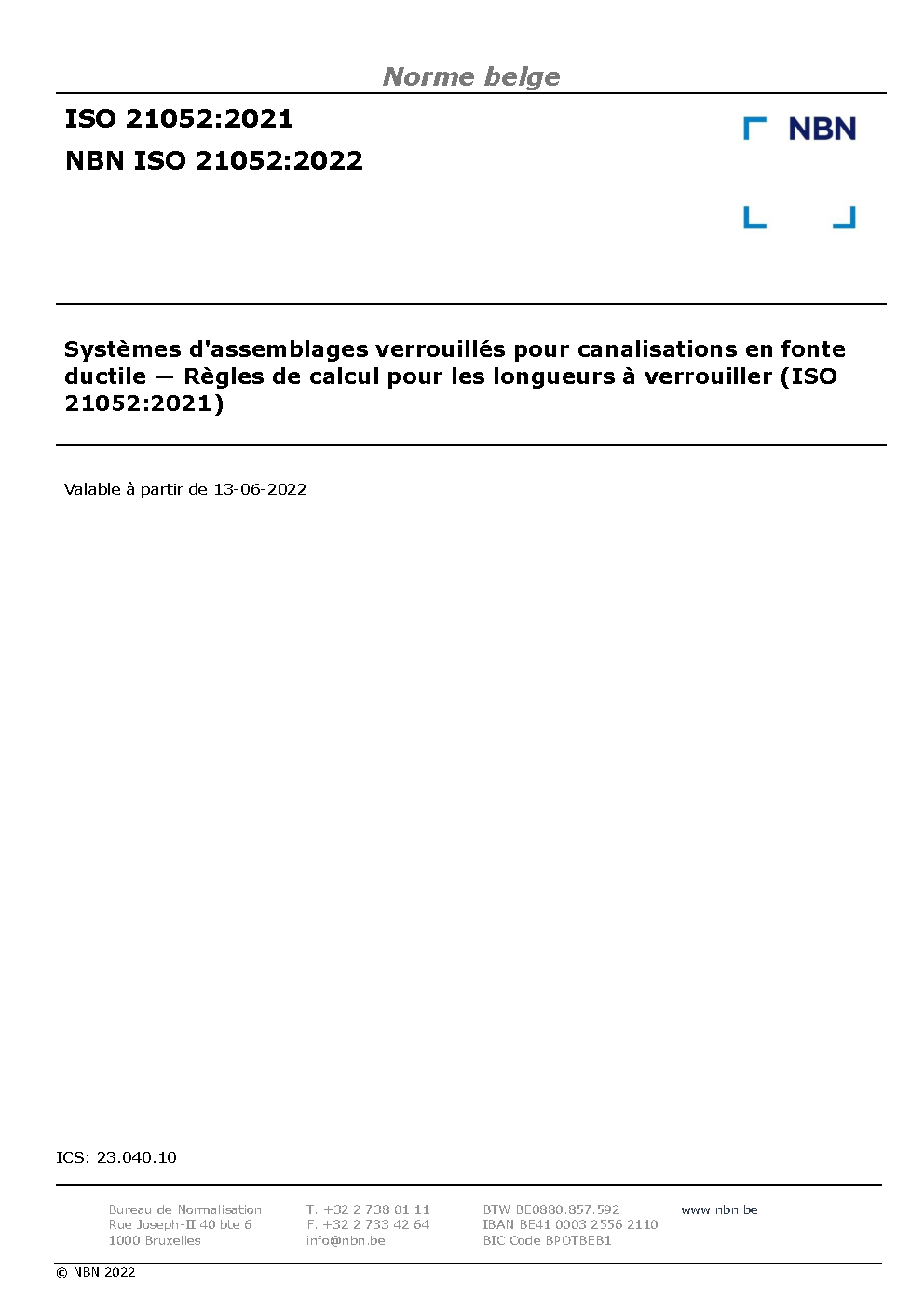

NBN ISO 21052:2022

This document specifies a computation method used to determine the length of the ductile iron pipes to
be restrained, when used for conveying raw water, drinking water, sewerage under pressure.
This computation method takes into account all common pipeline route changes, including changes in
the diameter of the pipeline itself and dead ends at the extremity of the pipeline, the outside diameter
of the pipe, the system test pressure (to estimate the thrust), depth of cover, the characteristics of the
soil surrounding the pipe and trench backfilling methods for a worldwide usage. The characteristics
of the restrained joint are not covered by this document but can also be considered to determine the
restraining length using any appropriate method.
The computation method defined in this document is applicable to all types of restrained joint systems,
with their operating pressure ratings of ductile iron pipelines complying with ISO 2531, ISO 7186 and
ISO 16631.
NOTE 1 ISO 10804 deals with actual design of the joint for various operating pressures of the pipeline.
NOTE 2 National standards or established calculation methods can be used instead of this ISO standard.
