NBN ISO 10889-4:2021
Tool holders with cylindrical shank — Part 4: Type C with rectangular axial seat

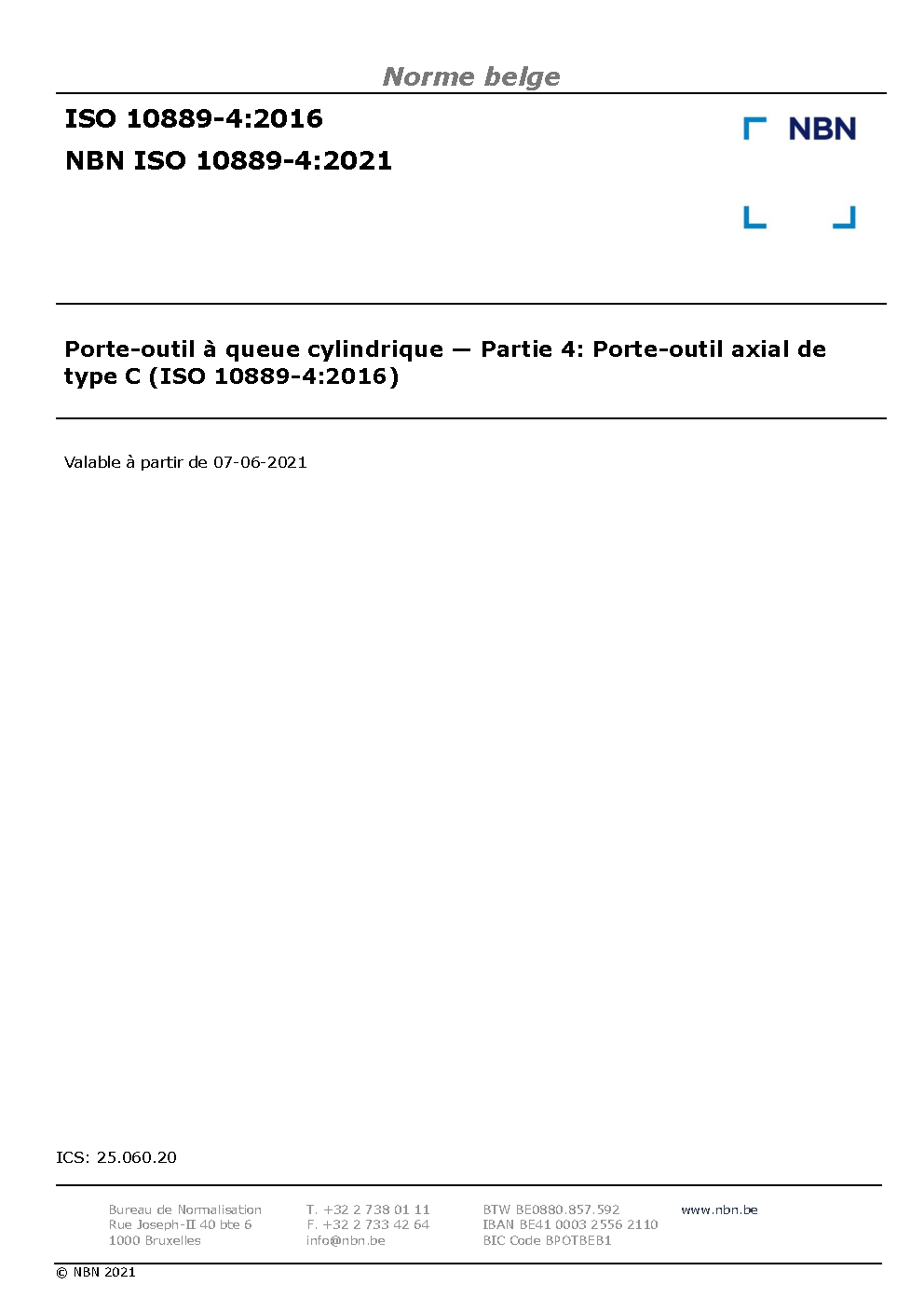

Preview
Summary
This part of ISO 10889 specifies dimensions, designations and complementary technical delivery
conditions for tool holders with a rectangular axial seat of types C1 to C4 with cylindrical shank in
accordance with ISO 10889-1.
ISO 10889 is applicable to tool holders with cylindrical shank for machine tools with non-rotating tools,
preferably for turning machines.
For non-standardized tool holders with rectangular axial seat, such as the tool holders shown in
Figures 1 to 4, it is advisable to apply the corresponding specifications of this part of ISO 10889.
conditions for tool holders with a rectangular axial seat of types C1 to C4 with cylindrical shank in
accordance with ISO 10889-1.
ISO 10889 is applicable to tool holders with cylindrical shank for machine tools with non-rotating tools,
preferably for turning machines.
For non-standardized tool holders with rectangular axial seat, such as the tool holders shown in
Figures 1 to 4, it is advisable to apply the corresponding specifications of this part of ISO 10889.
Technical characteristics
| Publisher | Bureau de Normalisation Belge (NBN) |
| Publication Date | 06/07/2021 |
| Page Count | 16 |
| EAN | --- |
| ISBN | --- |
| Weight (in grams) | --- |
