NBN EN ISO 9409-1:2004
Manipulating industrial robots - Mechanical interfaces - Part 1: Plates (ISO 9409-1:2004)

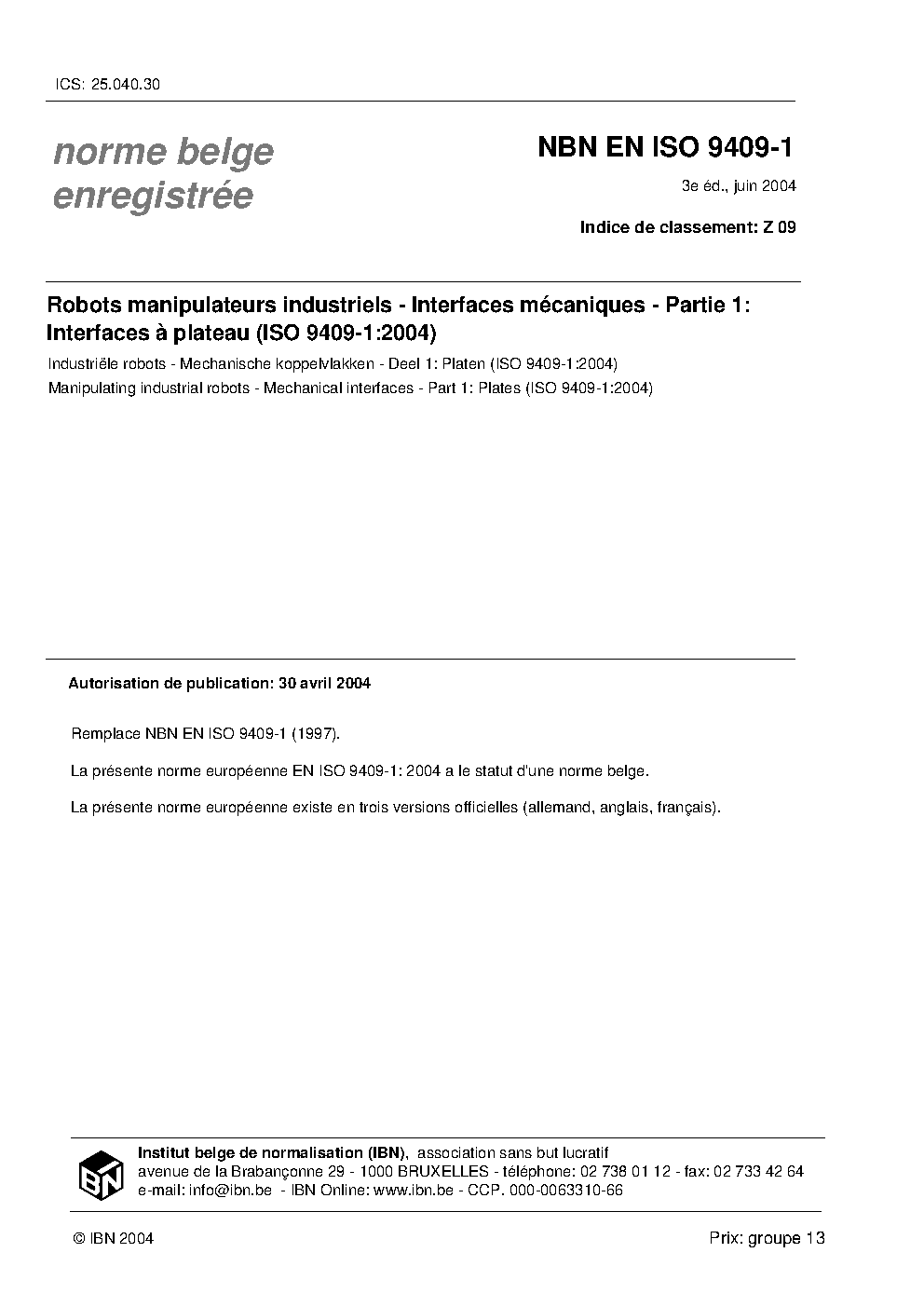

Preview
Summary
ISO 9409-1:2004 defines the main dimensions, designation and marking for a circular plate as mechanical interface. It is intended to ensure the exchangeability and to keep the orientation of hand-mounted end effectors.
It does not define other requirements of the end effector coupling device.
It does not contain any correlation of load-carrying ranges, as it is expected that the appropriate interface is selected depending on the application and the load-carrying capacity of the robot.
It does not define other requirements of the end effector coupling device.
It does not contain any correlation of load-carrying ranges, as it is expected that the appropriate interface is selected depending on the application and the load-carrying capacity of the robot.
Technical characteristics
| Publisher | Bureau de Normalisation Belge (NBN) |
| Publication Date | 04/30/2004 |
| Cancellation Date | 09/30/2004 |
| Page Count | 17 |
| EAN | --- |
| ISBN | --- |
| Weight (in grams) | --- |
