NBN EN ISO 6410-3:2021
Technical drawings - Screw threads and threaded parts - Part 3: Simplified representation (ISO 6410-3:2021)

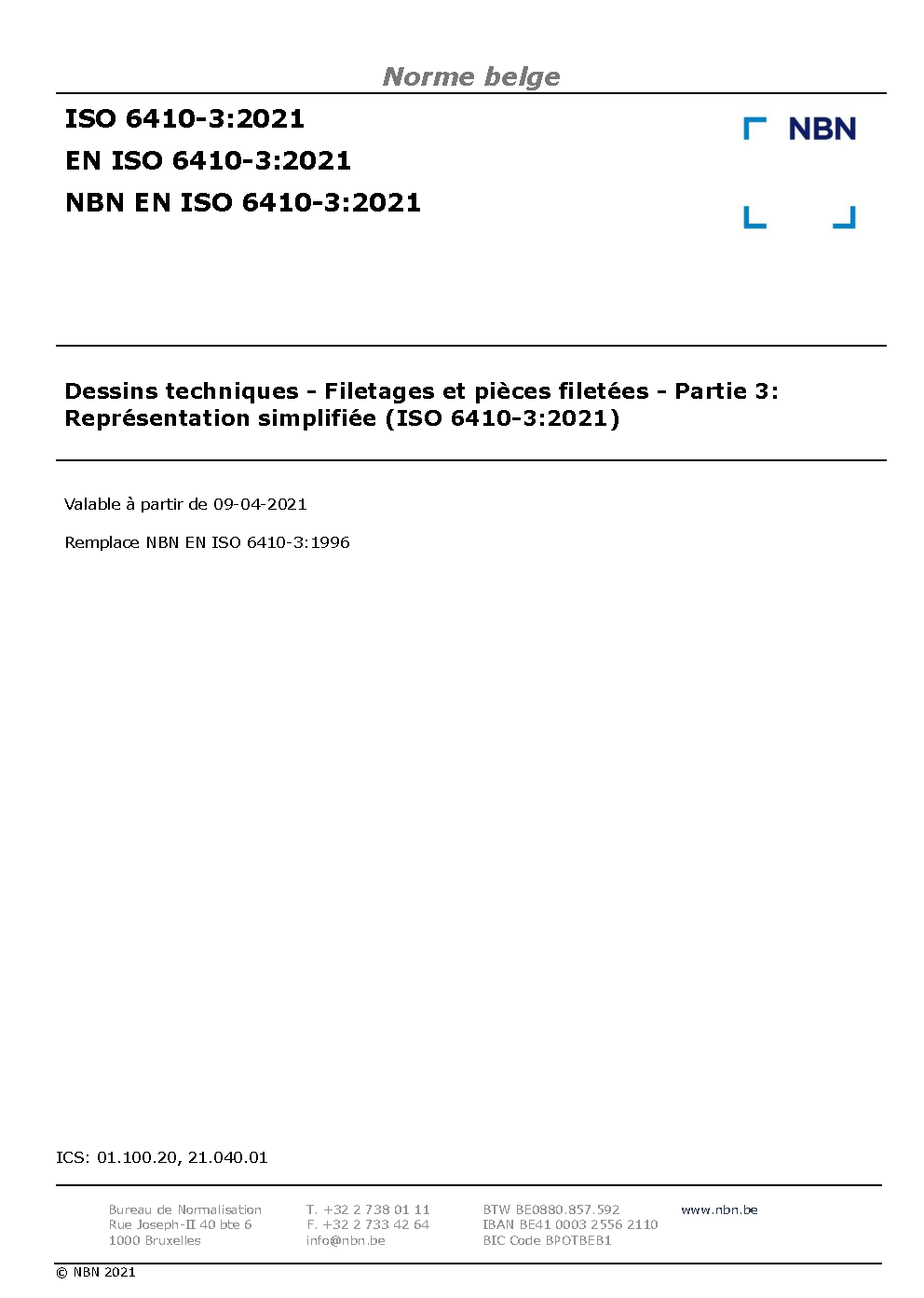

Preview
Summary
This document establishes rules for the simplified representation of threaded parts, with the exception of screw thread inserts, which are covered in ISO 6410-2. This representation is applicable when it is not necessary to show the exact shape and details of the parts (see ISO 6410-1), for example in assembly drawings.
Technical characteristics
| Publisher | Bureau de Normalisation Belge (NBN) |
| Publication Date | 04/09/2021 |
| Cancellation Date | 10/31/2021 |
| Page Count | 17 |
| EAN | --- |
| ISBN | --- |
| Weight (in grams) | --- |
