NBN E 23-402:2019
Gears - Calculation of Tooth Flank Fracture Load Capacity

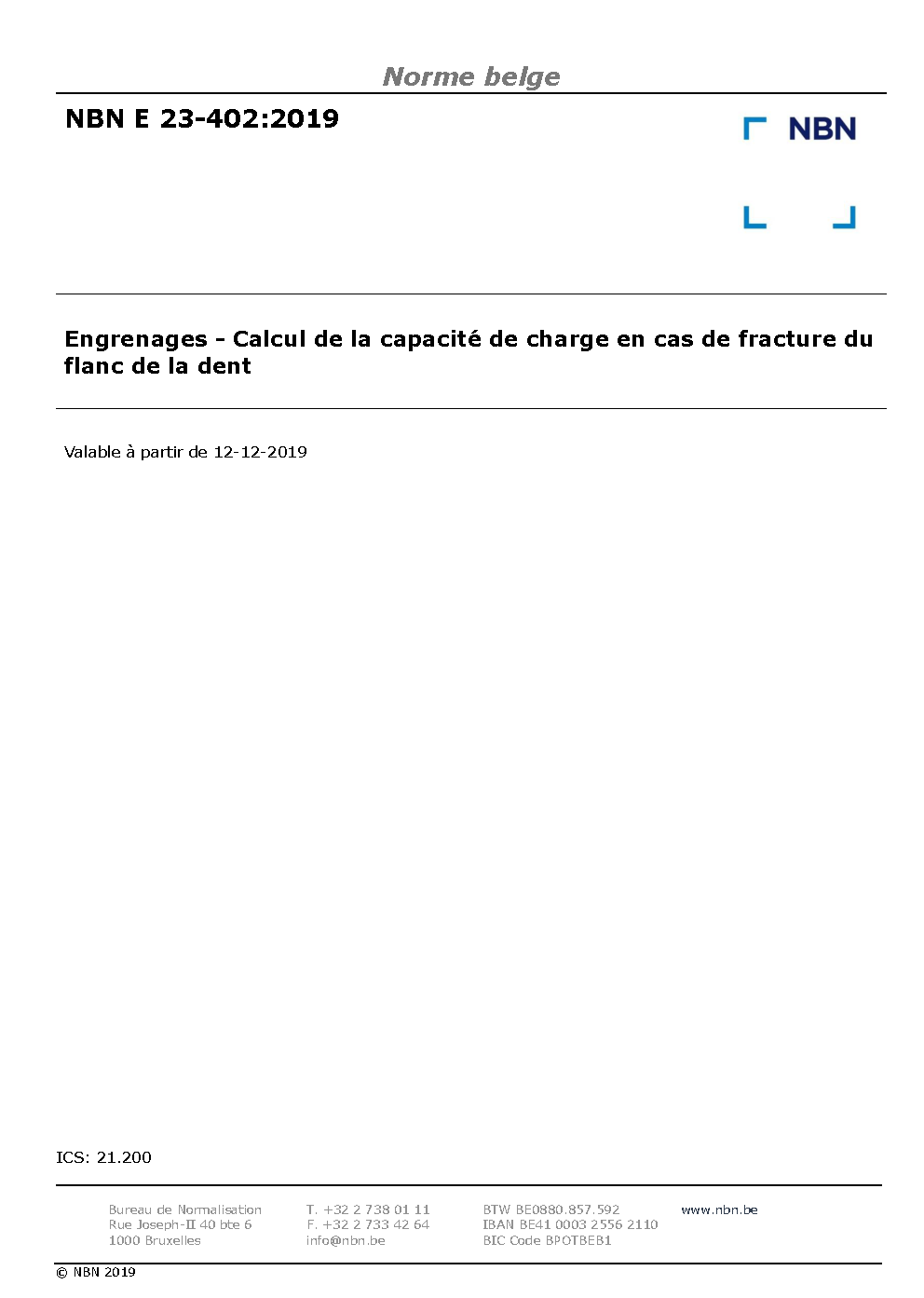

Preview
Summary
This standard defines a method that can be used to calculate tooth flank fracture.
This standard applies to external cylindrical case carburized spur and helical gears with these limitations:
Hertzian contact stress : 500 MPa < pH < 2000 MPa
Normal curvature radius : 5 mm < ?red < 150 mm
Hardness depth CHD550 : = 0,25 mm
This standard applies to external cylindrical case carburized spur and helical gears with these limitations:
Hertzian contact stress : 500 MPa < pH < 2000 MPa
Normal curvature radius : 5 mm < ?red < 150 mm
Hardness depth CHD550 : = 0,25 mm
Technical characteristics
| Publisher | Bureau de Normalisation Belge (NBN) |
| Publication Date | 12/12/2019 |
| Page Count | 22 |
| EAN | --- |
| ISBN | --- |
| Weight (in grams) | --- |
