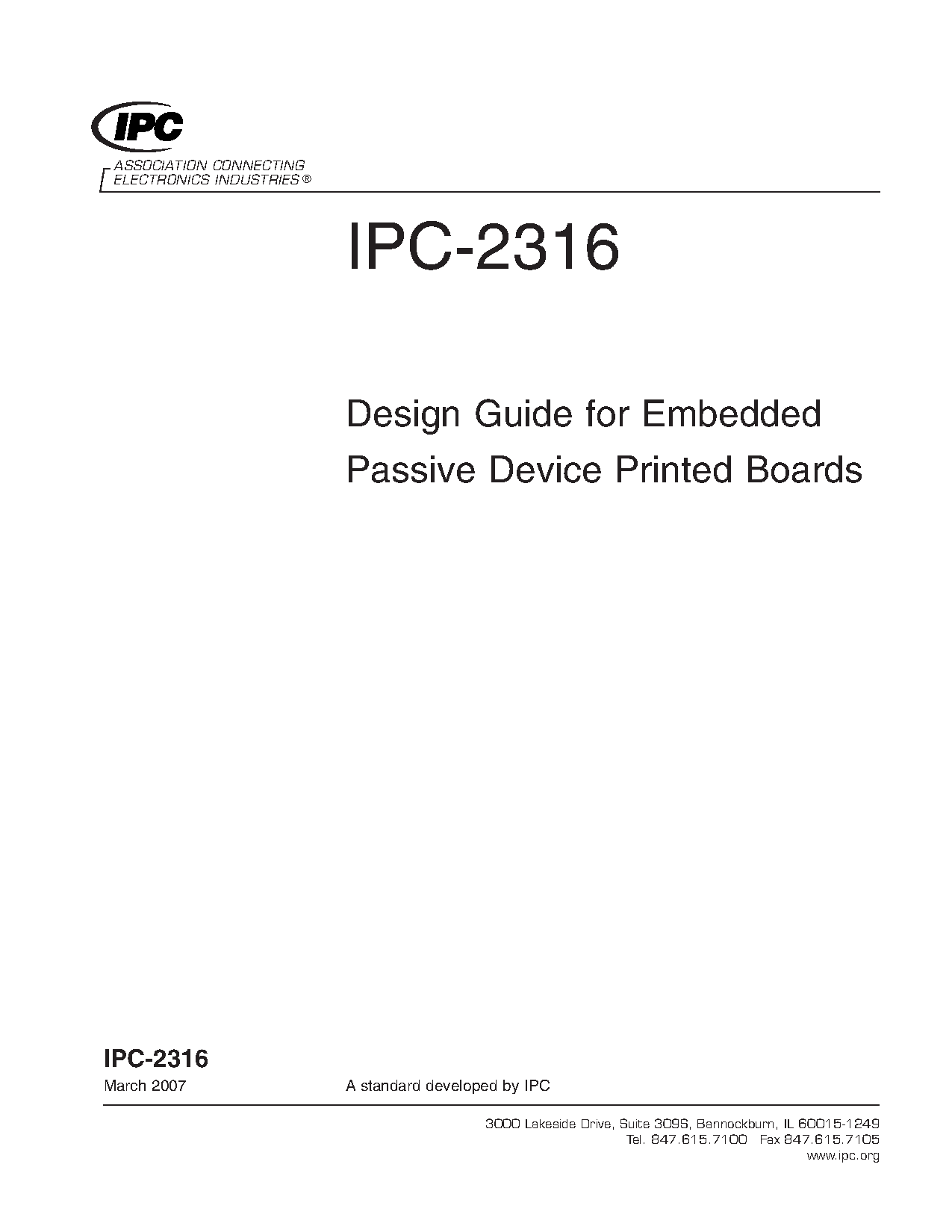

IPC-2316 - Standard Only:2007

IPC-2316 offers printed board users and designers the necessary information for incorporating formed and placed embedded passive components into their applications. The history of embedded passive technologies is given along with full coverage of embedded resistors, capacitors and inductors. In addition, it also assists the user in understanding some of the physical, electrical and thermal characteristics of the embedded component materials so that their designs can achieve maximum stability and performance. 52 pages. Released March 2007.
