IEEE P3148
IEEE Draft Guide for Detection of Cable Metallic Sheath Current in Single Conductor Alternating Current (AC) Cables Rated 69 kV to 500 kV

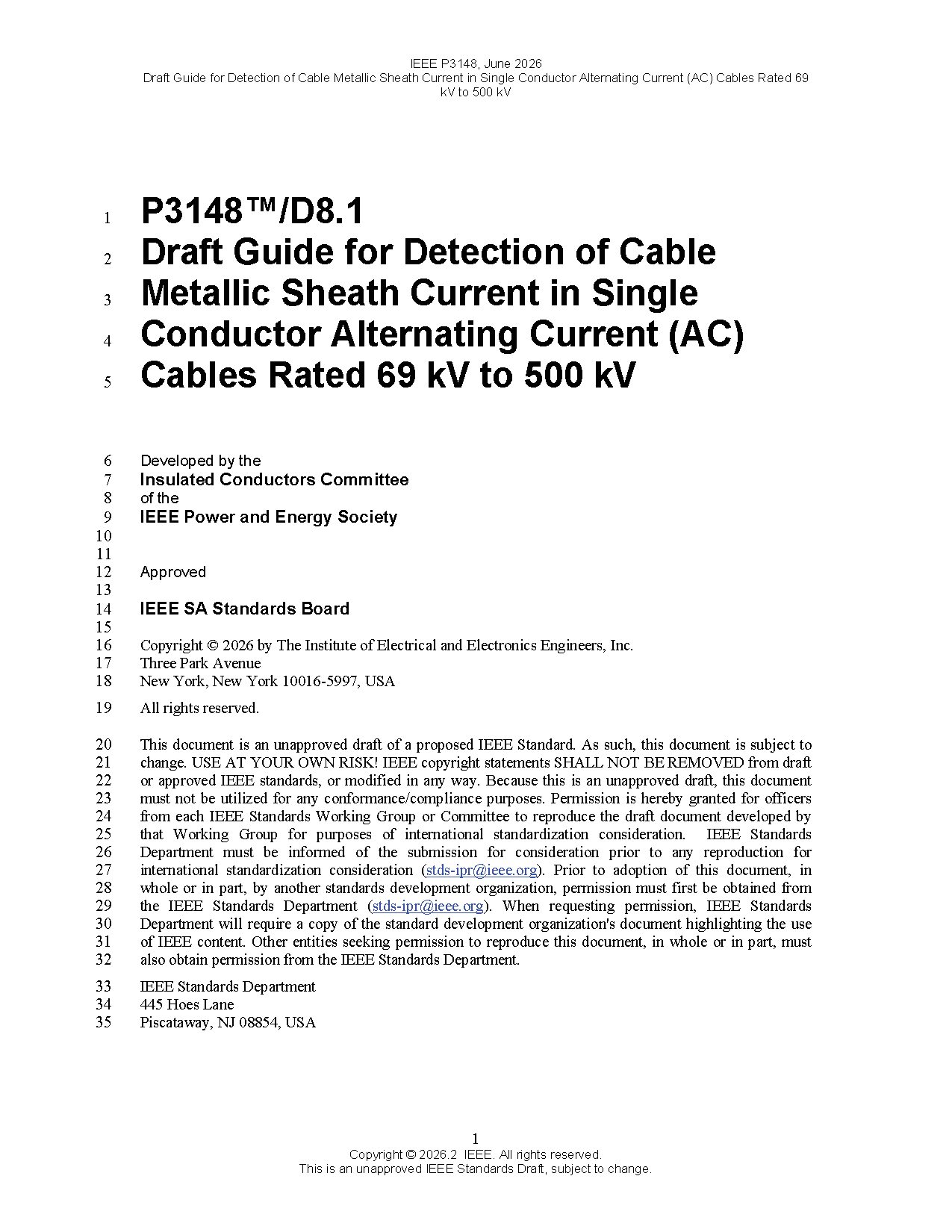

Preview
Summary
New IEEE Standard - Active - Draft.
Field detection method for metal sheath grounding system of single-conductor shield XLPE insulated ac cables rated 69 kV to 500 kV based on metallic sheath current are provided in this guide, including the detection method and the diagnostic criteria.
This guide describes a field detection method for the metallic sheath current of single-conductor shielded Cross-linked Polyethylene (XLPE) insulated AC cables rated from 69 kV to 500 kV, including the current detection method, safety requirements, and the diagnostic criteria for defects in a metallic sheath bonding system. The diagnostic criteria in this document can be referenced for other extruded insulation cables whose installation and metallic sheath grounding systems are similar to the specified XLPE cables.
The purpose of this guide is to provide a unified method of field detection of induced current on a cable metallic sheath and to provide the diagnosis criteria for defects in metallic sheath bonding systems.
Field detection method for metal sheath grounding system of single-conductor shield XLPE insulated ac cables rated 69 kV to 500 kV based on metallic sheath current are provided in this guide, including the detection method and the diagnostic criteria.
This guide describes a field detection method for the metallic sheath current of single-conductor shielded Cross-linked Polyethylene (XLPE) insulated AC cables rated from 69 kV to 500 kV, including the current detection method, safety requirements, and the diagnostic criteria for defects in a metallic sheath bonding system. The diagnostic criteria in this document can be referenced for other extruded insulation cables whose installation and metallic sheath grounding systems are similar to the specified XLPE cables.
The purpose of this guide is to provide a unified method of field detection of induced current on a cable metallic sheath and to provide the diagnosis criteria for defects in metallic sheath bonding systems.
Notes
Active
Technical characteristics
| Publisher | Institute of Electrical and Electronics Engineers (IEEE) |
| Publication Date | 01/01/2000 |
| Page Count | 42 |
| EAN | --- |
| ISBN | --- |
| Weight (in grams) | --- |
