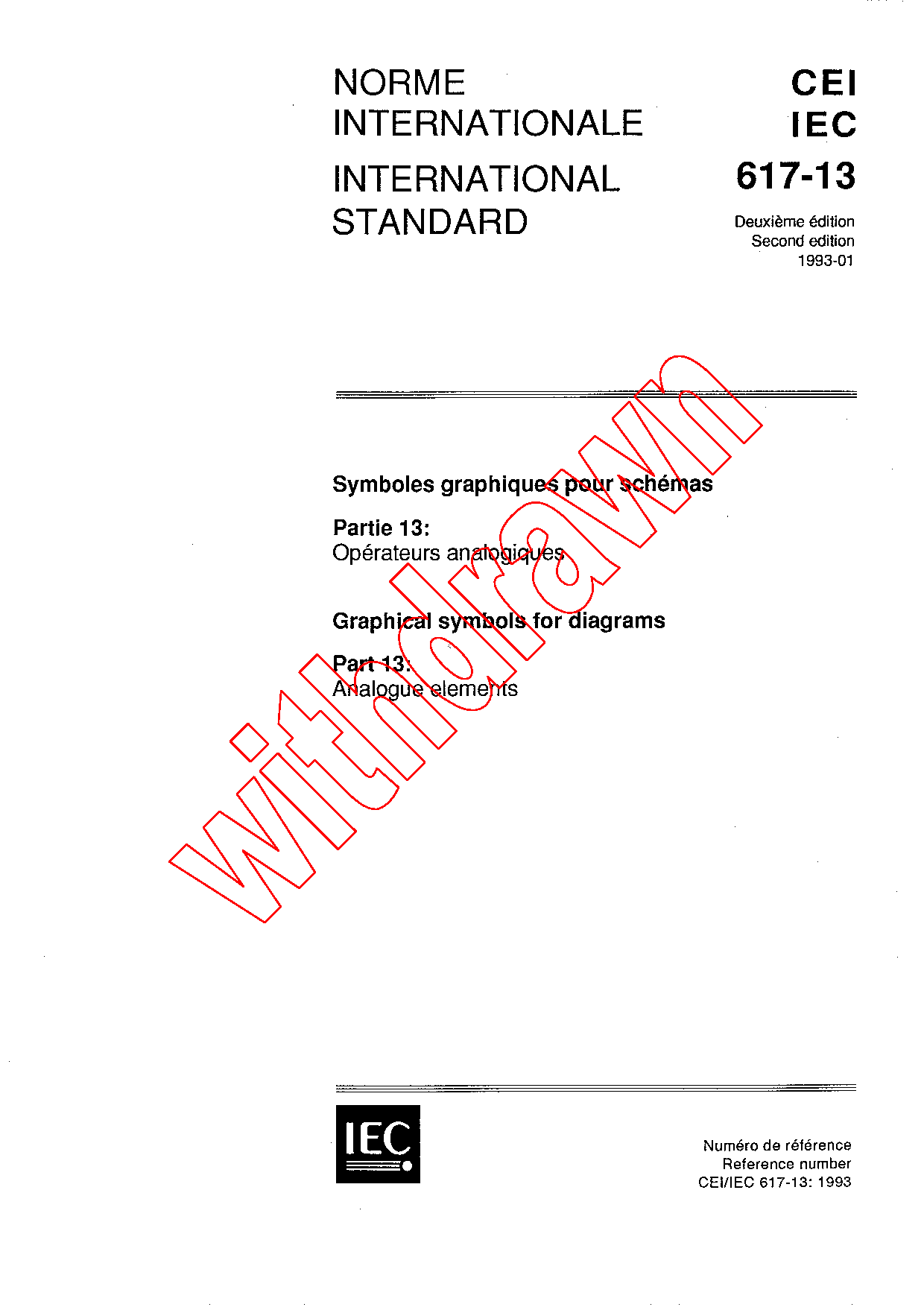

IEC 60617-13:1993
Superseded Standard
Historical

IEC 60617-13:1993

Graphical symbols for diagrams - Part 13: Analogue elements

Summary

General; qualifying symbols; amplifiers; function generators: co-ordinate converters; signal converters; electronic switches; coefficient scaler. Please note that parts 2 to 11 are available in database format.

Technical characteristics

Publisher International Electrotechnical Commission (IEC)
Publication Date 02/08/1993
Release Date 02/08/1993
Cancellation Date 09/13/2004
Edition 2
Page Count 50
EAN ---
ISBN ---
Weight (in grams) ---
